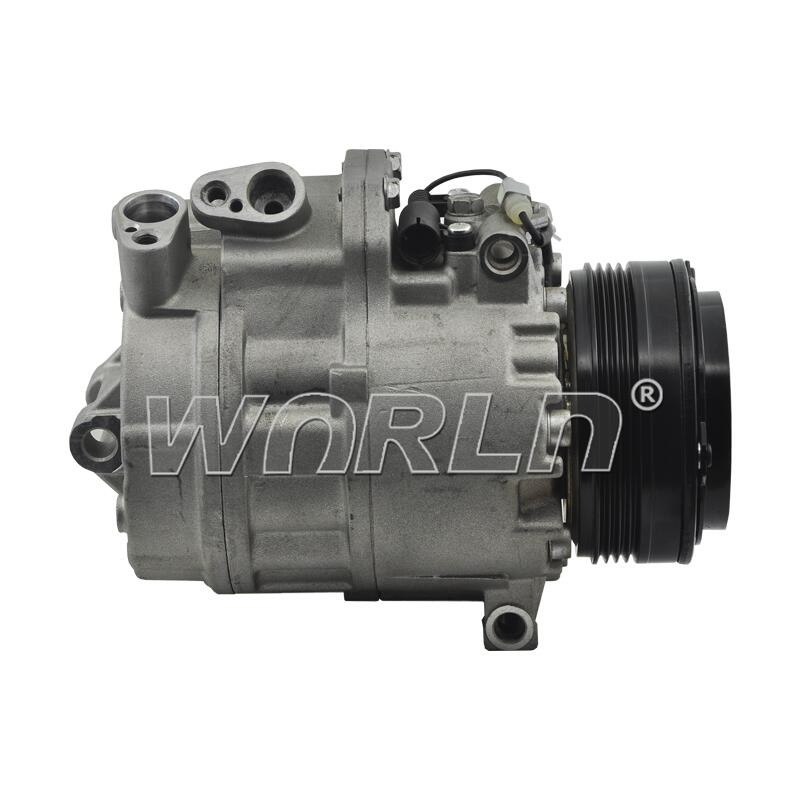

61136917368 64526917368 Auto Air Conditioner Parts Compressor For BMW X5 WXBM049
Description
This compressor uses a unique design with two scrolls, one fixed and one is movable, both are inter-leaved. The movable spiral is able to ORBIT or oscillate without actually fully rotating. The movable scroll is connected to the input shaft via a concentric bearing. As the movable spiral oscillates within the fixed spiral, a number of pockets are formed between the spiral. Asthese pockets decrease in size the refrigerant is squeezed, the pressure increases and is discharged through a reed valve at the discharge port in the rear section of the compressor.
Parameter:
| Model Number | WXBM049 |
| Car Model | For BMW X5 4.4L/4.8L E53 |
| Compressor model | CSV717 4PK |
| Type | Air Conditioner Compressor |
| Year Model | 2003-2006 |
| OE No. | 64526917864/64529158039/890292/61136917368/64526917368 |
Key Components of a Car Air Conditioning System A typical car air conditioning system consists of several key components. These include:
- Compressor: The compressor is the heart of the AC system. It compresses the refrigerant gas, increasing its temperature and pressure.
- Condenser: The condenser is positioned in front of the vehicle's radiator and acts as a heat exchanger. It cools down the compressed refrigerant, causing it to change from a gas to a liquid state.
- Expansion Valve: The expansion valve controls the flow of the refrigerant into the evaporator. It reduces the pressure and enables the refrigerant to rapidly expand, leading to a drop in temperature.
- Evaporator: The evaporator is typically located inside the dashboard or near the heating system. It absorbs heat from the cabin and cools the air by evaporating the liquid refrigerant.
- Receiver/Drier: The receiver/drier is responsible for removing moisture and contaminants from the refrigerant. It also stores the refrigerant until it is needed by the system. These key components work together to cool and dehumidify the air inside the car, providing a comfortable driving experience, especially in hot weather.
Common problems with automobile air conditioning compressors:
1. Refrigerant leaks: Over time, the refrigerant in the AC system can develop leaks, resulting in reduced cooling performance and potential damage to other components.
2. Compressor problems: The compressor is responsible for circulating the refrigerant and is prone to wear and tear. Common issues include compressor failure, clutch problems, or leaks.
3. Blower motor malfunction: The blower motor blows air into the cabin. If the motor fails or malfunctions, it can lead to weak airflow or no airflow at all.
4. Condenser troubles: The condenser, located at the front of the vehicle, can be damaged by debris, rocks, or accidents. A damaged condenser may reduce cooling efficiency.
5. Electrical issues: Problems with electrical components such as faulty wiring, blown fuses, or malfunctioning switches can affect the AC system's operation.
6. Blocked or clogged vents: Accumulated dust, debris, or objects obstructing the vents can restrict airflow and decrease the AC system's cooling capacity.
7.Expansion valve or evaporator problems: Issues with the expansion valve or evaporator, such as clogs or leaks, can lead to improper cooling and inadequate temperature regulation.
