Auto AC Compressor 97701S1000 CA500TMJDA04 For Hyundai For SantaFe TM 2.2 WXHY162

Auto AC Compressor 97701S1000 CA500TMJDA04 For Hyundai For SantaFe TM 2.2 WXHY162

Parameter:

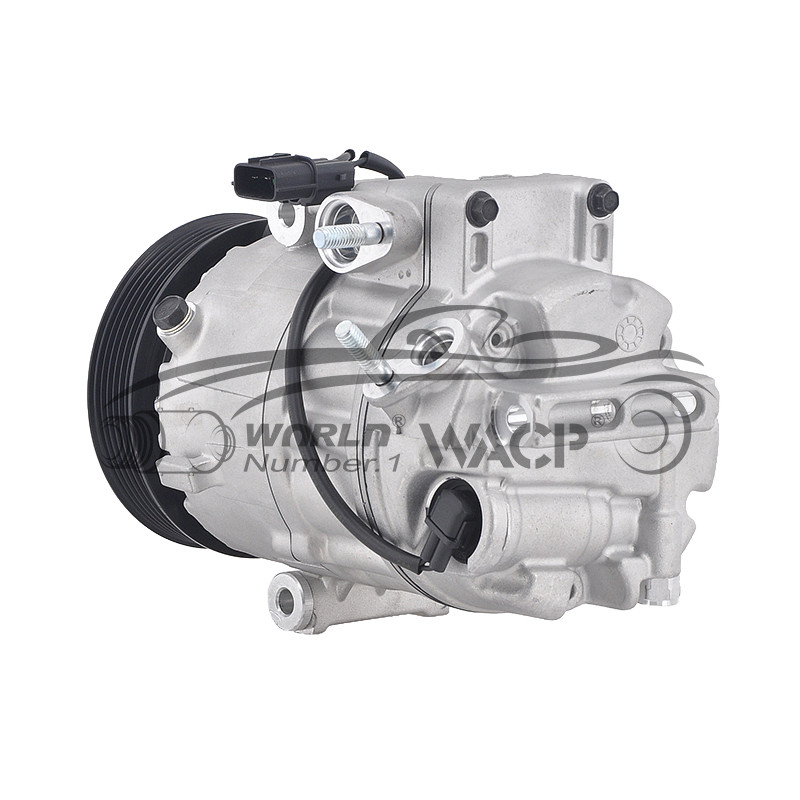

Compressor Pictures

How to install the car air conditioning compressor

1.Preparation‌:

• ‌Read the Manual‌: Begin by thoroughly reading the installation manual provided with the compressor to ensure you understand all the steps and precautions.

• ‌Tools and Equipment‌: Gather all the necessary tools and equipment, such as wrenches, torque wrenches, O-rings, refrigerant recovery equipment, and compressor oil.

• System Check‌: Verify that the air conditioning system is free of any leaks and that the refrigerant has been properly recovered to avoid environmental contamination.

​

2.Compressor Oil Management‌:

• ‌Drain Old Oil‌: If replacing an old compressor, drain the old compressor oil. Ensure to calculate the correct amount of new oil required by subtracting the residual oil in the old compressor from the capacity of the new compressor.

3.Compressor Installation‌:

• Mount the Compressor‌: Position the compressor in its mounting bracket and secure it using the appropriate bolts and nuts. Torque the bolts to the specified value, typically around 9.8N·m for initial installation and 25N·m for final tightening.

​​

• Connect Hoses‌: Attach the discharge and suction hoses to the compressor. Ensure to replace any worn or damaged O-rings and apply a thin layer of compressor oil to the O-ring and hose fitting surfaces. Torque the hose connections to the specified value, typically around 9.8N·m.

​

4.System Integration‌:

• Connect Electrical Wires‌: Connect the compressor's electrical wires to the vehicle's wiring harness. Ensure to follow the manufacturer's wiring diagram and use appropriate connectors and insulation.

​

• Check for Leaks‌: After installing the compressor and connecting all hoses and wires, use a leak detector to check for any leaks in the system.

​

5.Refrigerant Handling‌:

• Evacuate the System‌: Use a vacuum pump to evacuate the air conditioning system to remove any air, moisture, or non-condensable gases. This is crucial for the system's performance and longevity.

​

• Charge with Refrigerant‌: Once the system is evacuated, charge it with the correct amount of refrigerant specified by the manufacturer. Use a refrigerant recovery and recycling machine to ensure accurate charging.

​

6.Testing and Finalization‌:

• System Test‌: Start the engine and turn on the air conditioning to test the compressor's operation. Check for any unusual noises, vibrations, or leaks.

​

• Adjustments‌: If necessary, adjust the compressor's belt tension or make any other adjustments to ensure optimal performance.

​

By following these steps, you can ensure that your automotive air conditioning compressor is installed correctly and that the air conditioning system operates efficiently. Always refer to the manufacturer's instructions and use appropriate safety precautions when working with automotive air conditioning systems.

‌
